Go的定时器源码剖析

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

var timers struct {
	lock         mutex
	gp           *g
	created      bool
	sleeping     bool
	rescheduling bool
	sleepUntil   int64
	waitnote     note
	t            []*timer
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

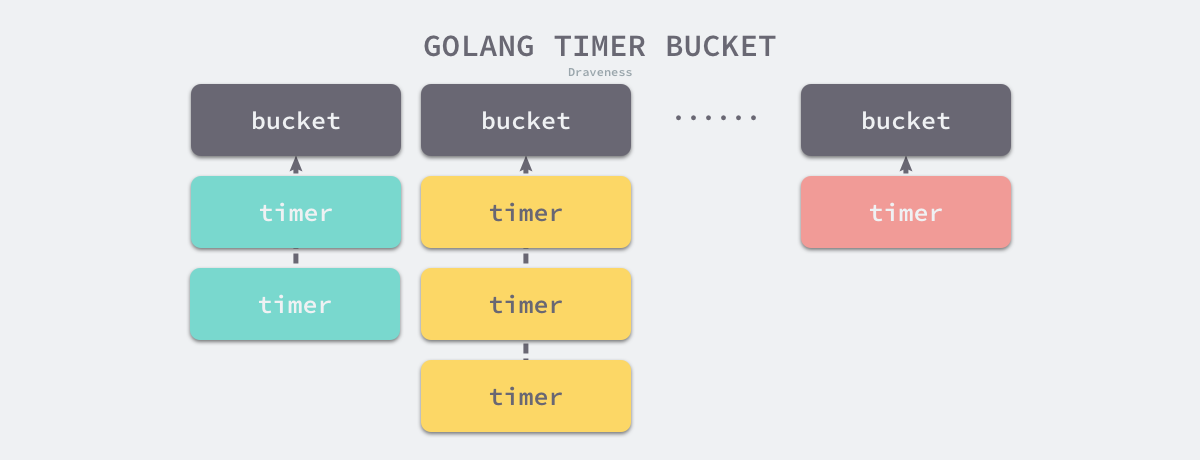

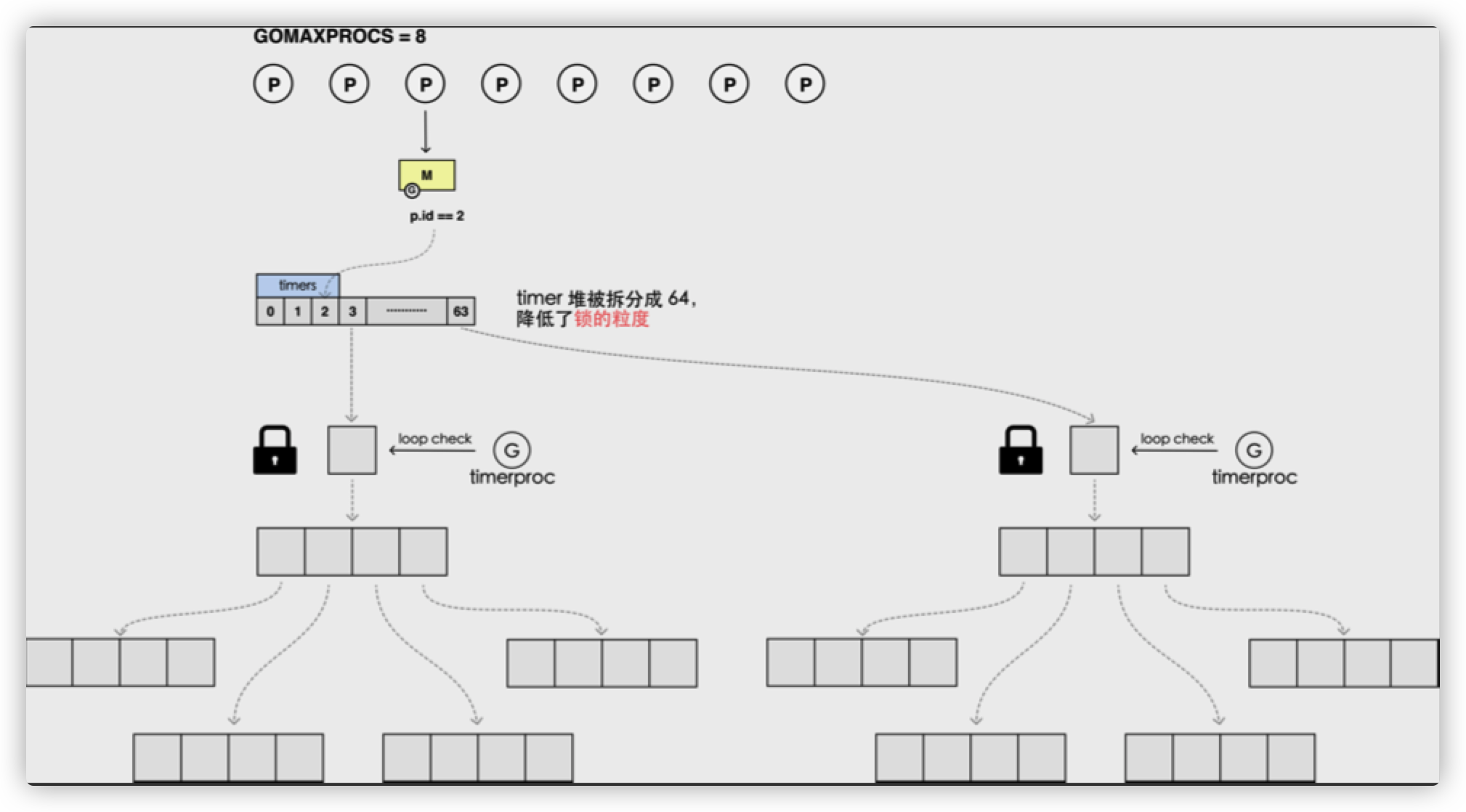

const timersLen = 64

var timers [timersLen]struct {
	timersBucket
}

type timersBucket struct {
	lock         mutex
	gp           *g
	created      bool
	sleeping     bool
	rescheduling bool
	sleepUntil   int64
	waitnote     note
	t            []*timer
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

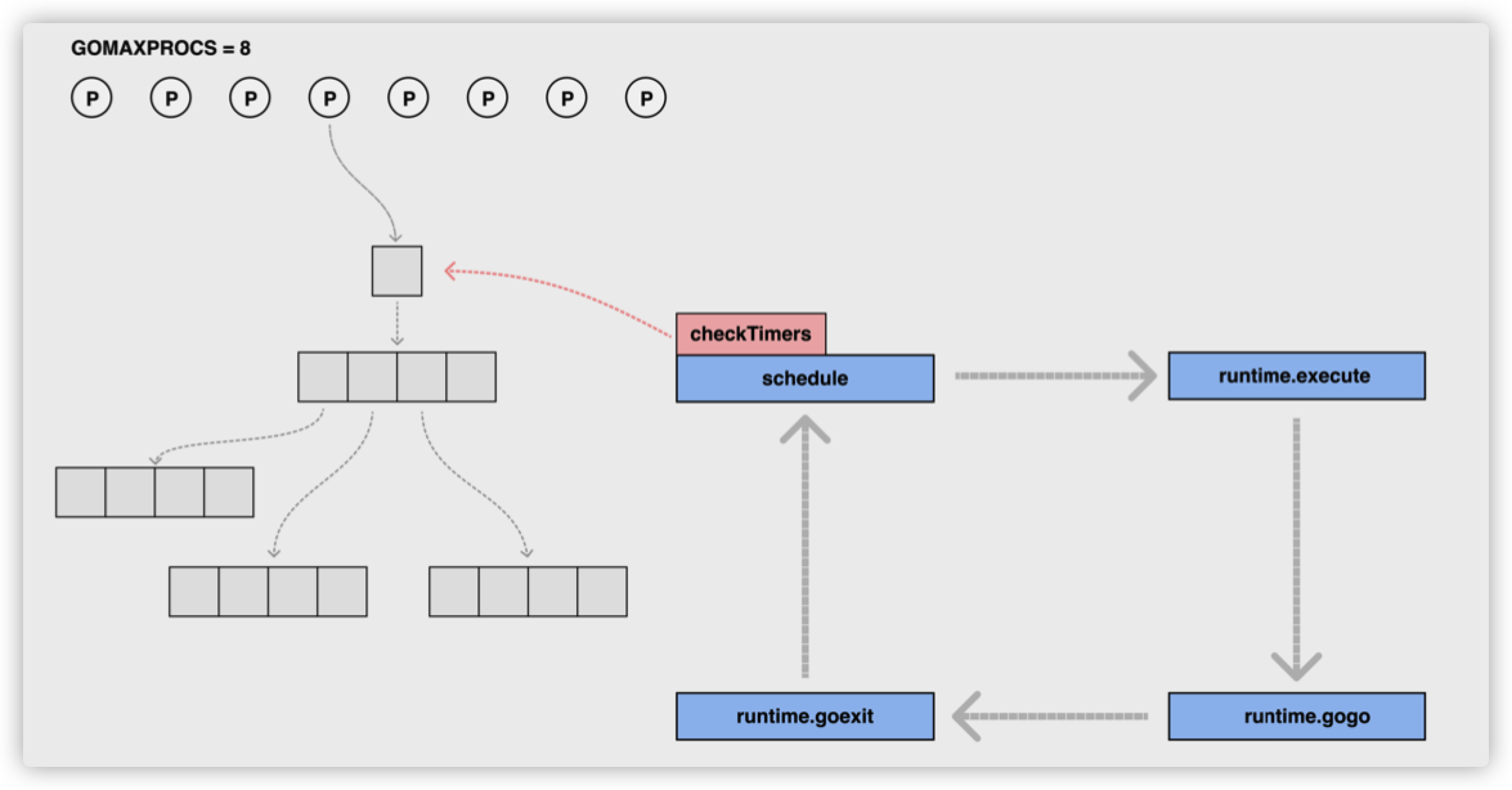

type p struct {
    ...
    // 互斥锁
    timersLock mutex

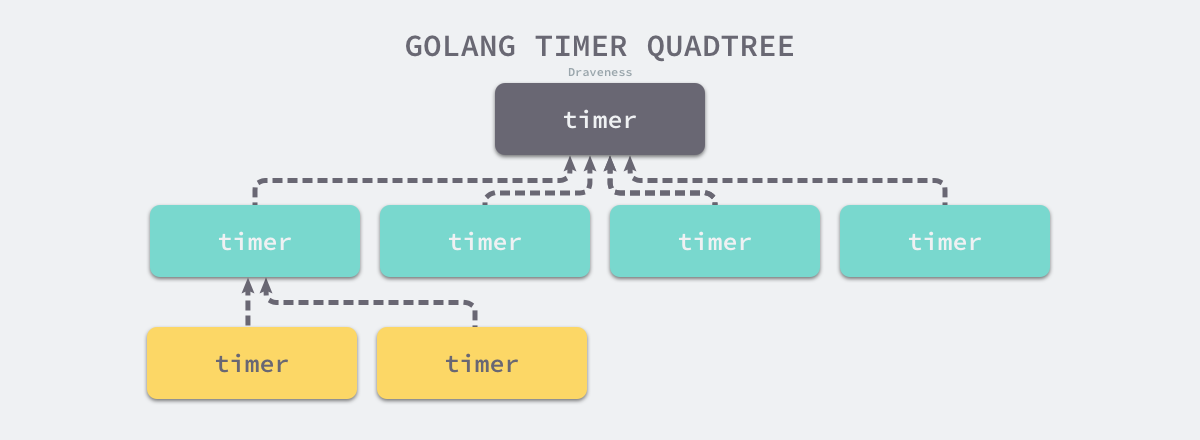

    // 存储计时器的最小四叉堆
    timers []*timer
    // 计时器数量
    numTimers uint32
    // 处于 timerModifiedEarlier 状态的计时器数量
    adjustTimers uint32
    // 处于 timerDeleted 状态的计时器数量
    deletedTimers uint32
    ...
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

package main

import (
	"fmt"
	"runtime"
	"time"
)

func main() {
    runtime.GOMAXPROCS(1)
    for i := 0; i < 10; i++ {
        i := i
        go func() {
            fmt.Println(i)
        }()
    }

    time.Sleep(time.Hour)
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

$ go1.13.8 run main.go

0
1
2
3
4
5
6
7
8

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

$ go1.14 run main.go

9
0
1
2
3
4
5
6
7
8

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

type timer struct {
	pp puintptr

	when     int64
	period   int64
	f        func(interface{}, uintptr)
	arg      interface{}
	seq      uintptr
	nextwhen int64
	status   uint32
}

1
2
3
4
5
6
7
8
9

// src/runtime/sleep.go
// The Timer type represents a single event.
// When the Timer expires, the current time will be sent on C,
// unless the Timer was created by AfterFunc.
// A Timer must be created with NewTimer or AfterFunc.
type Timer struct {
    C <-chan Time
    r runtimeTimer
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

// Interface to timers implemented in package runtime.
// Must be in sync with ../runtime/time.go:/^type timer
type runtimeTimer struct {
	tb uintptr
	i  int

	when   int64
	period int64
	f      func(interface{}, uintptr) // NOTE: must not be closure
	arg    interface{}
	seq    uintptr
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

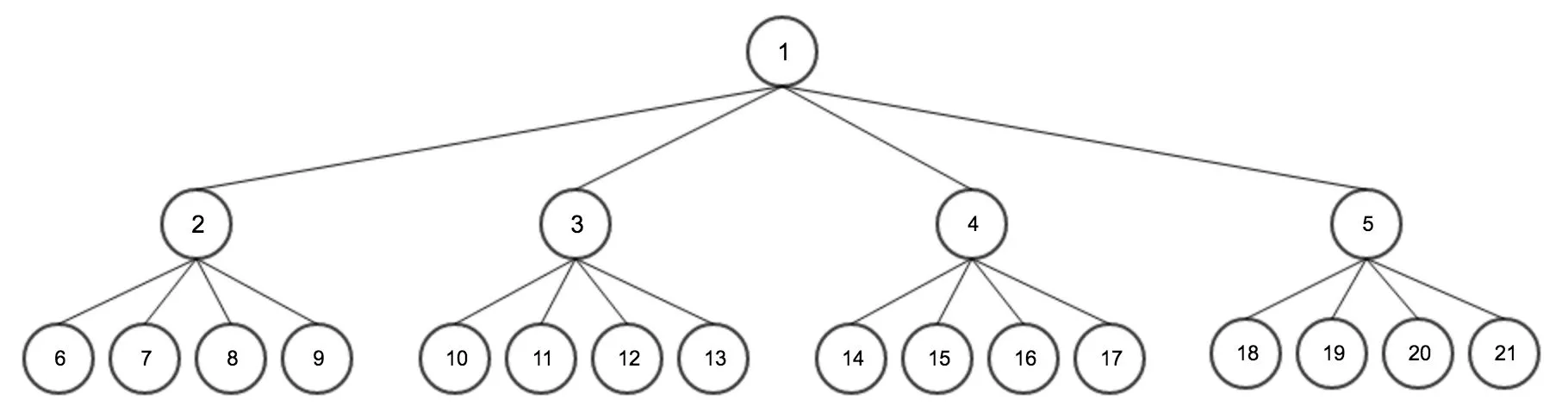

// Heap maintenance algorithms.
// These algorithms check for slice index errors manually.
// Slice index error can happen if the program is using racy
// access to timers. We don't want to panic here, because
// it will cause the program to crash with a mysterious
// "panic holding locks" message. Instead, we panic while not
// holding a lock.

func siftupTimer(t []*timer, i int) {
	if i >= len(t) {
		badTimer()
	}
    // 先暂存当前刚插入到数组尾部的节点
	when := t[i].when
	if when <= 0 {
		badTimer()
	}
	tmp := t[i]
    // 从当前插入节点的父节点开始
    // 如果最新插入的那个节点的触发时间要比父节点的触发时间更早
    // 那么就把这个父节点下移
	for i > 0 {
		p := (i - 1) / 4 // parent
		if when >= t[p].when {
			break
		}
		t[i] = t[p]
		i = p
	}
    // 如果发生过移动，用最新插入的节点
    // 覆盖掉最后一个下移的父节点
	if tmp != t[i] {
		t[i] = tmp
	}
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43

// 在所有孩子节点中先找出最小的那一个，如果最小的比当前要下移的节点还要大，那么就 break。反之，则将最小的节点上移，然后再判断这个最小节点的 4 个子节点是否都比要下移的节点大。
func siftdownTimer(t []*timer, i int) {
	n := len(t)
	if i >= n {
		badTimer()
	}
	when := t[i].when
	if when <= 0 {
		badTimer()
	}
	tmp := t[i]
	for {
		c := i*4 + 1 // left child
		c3 := c + 2  // mid child
		if c >= n {
			break
		}
		w := t[c].when
		if c+1 < n && t[c+1].when < w {
			w = t[c+1].when
			c++
		}
		if c3 < n {
			w3 := t[c3].when
			if c3+1 < n && t[c3+1].when < w3 {
				w3 = t[c3+1].when
				c3++
			}
			if w3 < w {
				w = w3
				c = c3
			}
		}
		if w >= when {
			break
		}
		t[i] = t[c]
		i = c
	}
	if tmp != t[i] {
		t[i] = tmp
	}
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42

// addtimer adds a timer to the current P.
// This should only be called with a newly created timer.
// That avoids the risk of changing the when field of a timer in some P's heap,
// which could cause the heap to become unsorted.
func addtimer(t *timer) {
    // addtimer 会对 timer 被唤醒的时间 when 进行校验，以及校验 status 必须是新出初始化的 timer；
    // 定时器被唤醒的时间的时间不能为负数
	// when must be positive. A negative value will cause runtimer to
	// overflow during its delta calculation and never expire other runtime
	// timers. Zero will cause checkTimers to fail to notice the timer.
	if t.when <= 0 {
		throw("timer when must be positive")
	}
	if t.period < 0 {
		throw("timer period must be non-negative")
	}
    // 状态必须为初始化
	if t.status != timerNoStatus {
		throw("addtimer called with initialized timer")
	}
    // 设置为等待调度
	t.status = timerWaiting

	when := t.when

	// Disable preemption while using pp to avoid changing another P's heap.
	mp := acquirem()
    // 获取当前 P
	pp := getg().m.p.ptr()
    // 接着会在加锁后调用 cleantimers 对 P 中对应的 timer 列表的头节点进行清理工作，清理完后调用 doaddtimer 将 timer 加入到 P 的最小堆中，并释放锁；
	lock(&pp.timersLock)
    // 清理 P 的 timer 列表头中的 timer
	cleantimers(pp)
    // 将 timer 加入到 P 的最小堆中
	doaddtimer(pp, t)
	unlock(&pp.timersLock)
    // 唤醒 netpoller 中休眠的线程
    // 调用 wakeNetPoller 唤醒 netpoller 中休眠的线程。
	wakeNetPoller(when)

	releasem(mp)
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

// doaddtimer adds t to the current P's heap.
// The caller must have locked the timers for pp.
func doaddtimer(pp *p, t *timer) {
	// Timers rely on the network poller, so make sure the poller
	// has started.
    // Timers 依赖于 netpoller
    // 所以如果 netpoller 没有启动，需要启动一下
	if netpollInited == 0 {
		netpollGenericInit()
	}
    // 校验是否早已在 timer 列表中
	if t.pp != 0 {
		throw("doaddtimer: P already set in timer")
	}
    // 设置 timer 与 P 的关联
	t.pp.set(pp)
	i := len(pp.timers)
    // 将 timer 加入到 P 的 timer 列表中
	pp.timers = append(pp.timers, t)
    // 维护 timer 在 最小堆中的位置
	siftupTimer(pp.timers, i)
    // 如果 timer 是列表中头节点，需要设置一下 timer0When
	if t == pp.timers[0] {
		atomic.Store64(&pp.timer0When, uint64(t.when))
	}
	atomic.Xadd(&pp.numTimers, 1)
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

// wakeNetPoller wakes up the thread sleeping in the network poller if it isn't
// going to wake up before the when argument; or it wakes an idle P to service
// timers and the network poller if there isn't one already.
func wakeNetPoller(when int64) {
    // 如果计时器的触发时间小于netpoller的下一次轮询时间
	if atomic.Load64(&sched.lastpoll) == 0 {
		// In findrunnable we ensure that when polling the pollUntil
		// field is either zero or the time to which the current
		// poll is expected to run. This can have a spurious wakeup
		// but should never miss a wakeup.
		pollerPollUntil := int64(atomic.Load64(&sched.pollUntil))
		if pollerPollUntil == 0 || pollerPollUntil > when {
            // 向netpollBreakWr里面写入数据，立即中断netpoll
			netpollBreak()
		}
	} else {
		// There are no threads in the network poller, try to get
		// one there so it can handle new timers.
		if GOOS != "plan9" { // Temporary workaround - see issue #42303.
			wakep()
		}
	}
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

// netpollBreak interrupts a kevent.
func netpollBreak() {
	if atomic.Cas(&netpollWakeSig, 0, 1) {
		for {
			var b byte
			n := write(netpollBreakWr, unsafe.Pointer(&b), 1)
			if n == 1 || n == -_EAGAIN {
				break
			}
			if n == -_EINTR {
				continue
			}
			println("runtime: netpollBreak write failed with", -n)
			throw("runtime: netpollBreak write failed")
		}
	}
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

func TestNetpollBreak(t *testing.T) {
    if runtime.GOMAXPROCS(0) == 1 {
        t.Skip("skipping: GOMAXPROCS=1")
    }
    // 初始化 netpoll
    runtime.NetpollGenericInit()

    start := time.Now()
    c := make(chan bool, 2)
    go func() {
        c <- true
        // netpoll 等待时间
        runtime.Netpoll(10 * time.Second.Nanoseconds())
        c <- true
    }()
    <-c
loop:
    for {
        runtime.Usleep(100)
        // 中断netpoll 等待
        runtime.NetpollBreak()
        runtime.NetpollBreak()
        select {
        case <-c:
            break loop
        default:
        }
    }
    if dur := time.Since(start); dur > 5*time.Second {
        t.Errorf("netpollBreak did not interrupt netpoll: slept for: %v", dur)
    }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49

func netpoll(delay int64) gList {
    if epfd == -1 {
        return gList{}
    }
    var waitms int32
    // 因为传入delay单位是纳秒，下面将纳秒转换成毫秒
    if delay < 0 {
        waitms = -1
    } else if delay == 0 {
        waitms = 0
    } else if delay < 1e6 {
        waitms = 1
    } else if delay < 1e15 {
        waitms = int32(delay / 1e6)
    } else {
        waitms = 1e9
    }
    var events [128]epollevent
retry:
    // 等待文件描述符转换成可读或者可写
    n := epollwait(epfd, &events[0], int32(len(events)), waitms)
    // 返回负值，那么重新调用epollwait进行等待
    if n < 0 {
        ...
        goto retry
    }
    var toRun gList
    for i := int32(0); i < n; i++ {
        ev := &events[i]
        if ev.events == 0 {
            continue
        }
        // 如果是 NetpollBreak 中断的，那么执行 continue 跳过
        if *(**uintptr)(unsafe.Pointer(&ev.data)) == &netpollBreakRd {
            if ev.events != _EPOLLIN {
                println("runtime: netpoll: break fd ready for", ev.events)
                throw("runtime: netpoll: break fd ready for something unexpected")
            }
            if delay != 0 {
                var tmp [16]byte
                read(int32(netpollBreakRd), noescape(unsafe.Pointer(&tmp[0])), int32(len(tmp)))
                atomic.Store(&netpollWakeSig, 0)
            }
            continue
        }
        ...
    }
    return toRun
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21

func findrunnable() (gp *g, inheritTime bool) {
    ...
    delta := int64(-1)
    if pollUntil != 0 {
        // checkTimers ensures that polluntil > now.
        delta = pollUntil - now
    }
    ...
    // poll network
    // 休眠前再次检查 poll 网络
    if netpollinited() && (atomic.Load(&netpollWaiters) > 0 || pollUntil != 0) && atomic.Xchg64(&sched.lastpoll, 0) != 0 {
        ...
        // 阻塞调用
        list := netpoll(delta)

    }
    ...
    // 休眠当前 M
    stopm()
    goto top
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65

// deltimer deletes the timer t. It may be on some other P, so we can't
// actually remove it from the timers heap. We can only mark it as deleted.
// It will be removed in due course by the P whose heap it is on.
// Reports whether the timer was removed before it was run.
func deltimer(t *timer) bool {
	for {
		switch s := atomic.Load(&t.status); s {
		case timerWaiting, timerModifiedLater:
			// Prevent preemption while the timer is in timerModifying.
			// This could lead to a self-deadlock. See #38070.
			mp := acquirem()
			if atomic.Cas(&t.status, s, timerModifying) {
				// Must fetch t.pp before changing status,
				// as cleantimers in another goroutine
				// can clear t.pp of a timerDeleted timer.
				tpp := t.pp.ptr()
				if !atomic.Cas(&t.status, timerModifying, timerDeleted) {
					badTimer()
				}
				releasem(mp)
				atomic.Xadd(&tpp.deletedTimers, 1)
				// Timer was not yet run.
				return true
			} else {
				releasem(mp)
			}
		case timerModifiedEarlier:
			// Prevent preemption while the timer is in timerModifying.
			// This could lead to a self-deadlock. See #38070.
			mp := acquirem()
			if atomic.Cas(&t.status, s, timerModifying) {
				// Must fetch t.pp before setting status
				// to timerDeleted.
				tpp := t.pp.ptr()
				atomic.Xadd(&tpp.adjustTimers, -1)
				if !atomic.Cas(&t.status, timerModifying, timerDeleted) {
					badTimer()
				}
				releasem(mp)
				atomic.Xadd(&tpp.deletedTimers, 1)
				// Timer was not yet run.
				return true
			} else {
				releasem(mp)
			}
		case timerDeleted, timerRemoving, timerRemoved:
			// Timer was already run.
			return false
		case timerRunning, timerMoving:
			// The timer is being run or moved, by a different P.
			// Wait for it to complete.
			osyield()
		case timerNoStatus:
			// Removing timer that was never added or
			// has already been run. Also see issue 21874.
			return false
		case timerModifying:
			// Simultaneous calls to deltimer and modtimer.
			// Wait for the other call to complete.
			osyield()
		default:
			badTimer()
		}
	}
}

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126

// modtimer modifies an existing timer.
// This is called by the netpoll code or time.Ticker.Reset or time.Timer.Reset.
// Reports whether the timer was modified before it was run.
func modtimer(t *timer, when, period int64, f func(interface{}, uintptr), arg interface{}, seq uintptr) bool {
	if when <= 0 {
		throw("timer when must be positive")
	}
	if period < 0 {
		throw("timer period must be non-negative")
	}

	status := uint32(timerNoStatus)
	wasRemoved := false
	var pending bool
	var mp *m
loop:
	for {
        // 修改 timer 状态
		switch status = atomic.Load(&t.status); status {
		case timerWaiting, timerModifiedEarlier, timerModifiedLater:
			// Prevent preemption while the timer is in timerModifying.
			// This could lead to a self-deadlock. See #38070.
			mp = acquirem()
			if atomic.Cas(&t.status, status, timerModifying) {
				pending = true // timer not yet run
				break loop
			}
			releasem(mp)
		case timerNoStatus, timerRemoved:
			// Prevent preemption while the timer is in timerModifying.
			// This could lead to a self-deadlock. See #38070.
			mp = acquirem()

			// Timer was already run and t is no longer in a heap.
			// Act like addtimer.
			if atomic.Cas(&t.status, status, timerModifying) {
				wasRemoved = true
				pending = false // timer already run or stopped
				break loop
			}
			releasem(mp)
		case timerDeleted:
			// Prevent preemption while the timer is in timerModifying.
			// This could lead to a self-deadlock. See #38070.
			mp = acquirem()
			if atomic.Cas(&t.status, status, timerModifying) {
				atomic.Xadd(&t.pp.ptr().deletedTimers, -1)
				pending = false // timer already stopped
				break loop
			}
			releasem(mp)
		case timerRunning, timerRemoving, timerMoving:
			// The timer is being run or moved, by a different P.
			// Wait for it to complete.
			osyield()
		case timerModifying:
			// Multiple simultaneous calls to modtimer.
			// Wait for the other call to complete.
			osyield()
		default:
			badTimer()
		}
	}

	t.period = period
	t.f = f
	t.arg = arg
	t.seq = seq
    // 如果 timer 已被删除，那么需要重新添加到 timer 列表中
	if wasRemoved {
		t.when = when
		pp := getg().m.p.ptr()
		lock(&pp.timersLock)
		doaddtimer(pp, t)
		unlock(&pp.timersLock)
		if !atomic.Cas(&t.status, timerModifying, timerWaiting) {
			badTimer()
		}
		releasem(mp)
		wakeNetPoller(when)
	} else {
		// The timer is in some other P's heap, so we can't change
		// the when field. If we did, the other P's heap would
		// be out of order. So we put the new when value in the
		// nextwhen field, and let the other P set the when field
		// when it is prepared to resort the heap.
		t.nextwhen = when

		newStatus := uint32(timerModifiedLater)
        // 如果修改后的时间小于修改前的时间，将状态设置为 timerModifiedEarlier
		if when < t.when {
			newStatus = timerModifiedEarlier
		}

		tpp := t.pp.ptr()

		// Update the adjustTimers field.  Subtract one if we
		// are removing a timerModifiedEarlier, add one if we
		// are adding a timerModifiedEarlier.
		adjust := int32(0)
		if status == timerModifiedEarlier {
			adjust--
		}
		if newStatus == timerModifiedEarlier {
			adjust++
			updateTimerModifiedEarliest(tpp, when)
		}
		if adjust != 0 {
			atomic.Xadd(&tpp.adjustTimers, adjust)
		}

		// Set the new status of the timer.
		if !atomic.Cas(&t.status, timerModifying, newStatus) {
			badTimer()
		}
		releasem(mp)

		// If the new status is earlier, wake up the poller.
        // 如果修改时间提前，那么触发 netpoll 中断
		if newStatus == timerModifiedEarlier {
			wakeNetPoller(when)
		}
	}

	return pending
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64

// cleantimers cleans up the head of the timer queue. This speeds up
// programs that create and delete timers; leaving them in the heap
// slows down addtimer. Reports whether no timer problems were found.
// The caller must have locked the timers for pp.
func cleantimers(pp *p) {
	gp := getg()
	for {
        // 调度器列表为空，直接返回
		if len(pp.timers) == 0 {
			return
		}

		// This loop can theoretically run for a while, and because
		// it is holding timersLock it cannot be preempted.
		// If someone is trying to preempt us, just return.
		// We can clean the timers later.
        // 如果当前 G 被抢占了，直接返回
		if gp.preemptStop {
			return
		}
        // 获取第一个 timer
		t := pp.timers[0]
		if t.pp.ptr() != pp {
			throw("cleantimers: bad p")
		}
		switch s := atomic.Load(&t.status); s {
		case timerDeleted:
            // 设置 timer 的状态
			if !atomic.Cas(&t.status, s, timerRemoving) {
				continue
			}
            // 删除第一个 timer
			dodeltimer0(pp)
            // 删除完毕后重置状态为 timerRemoved
			if !atomic.Cas(&t.status, timerRemoving, timerRemoved) {
				badTimer()
			}
			atomic.Xadd(&pp.deletedTimers, -1)
        // timer 被修改到了更早或更晚的时间
		case timerModifiedEarlier, timerModifiedLater:
            // 将 timer 状态设置为 timerMoving
			if !atomic.Cas(&t.status, s, timerMoving) {
				continue
			}
			// Now we can change the when field.
            // 重新设置 when 字段
			t.when = t.nextwhen
			// Move t to the right position.
            // 在列表中删除后重新加入
			dodeltimer0(pp)
			doaddtimer(pp, t)
			if s == timerModifiedEarlier {
				atomic.Xadd(&pp.adjustTimers, -1)
			}
            // 设置状态为 timerWaiting
			if !atomic.Cas(&t.status, timerMoving, timerWaiting) {
				badTimer()
			}
		default:
			// Head of timers does not need adjustment.
			return
		}
	}
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92

// adjusttimers looks through the timers in the current P's heap for
// any timers that have been modified to run earlier, and puts them in
// the correct place in the heap. While looking for those timers,
// it also moves timers that have been modified to run later,
// and removes deleted timers. The caller must have locked the timers for pp.
func adjusttimers(pp *p, now int64) {
	if atomic.Load(&pp.adjustTimers) == 0 {
		if verifyTimers {
			verifyTimerHeap(pp)
		}
		// There are no timers to adjust, so it is safe to clear
		// timerModifiedEarliest. Do so in case it is stale.
		// Everything will work if we don't do this,
		// but clearing here may save future calls to adjusttimers.
		atomic.Store64(&pp.timerModifiedEarliest, 0)
		return
	}

	// If we haven't yet reached the time of the first timerModifiedEarlier
	// timer, don't do anything. This speeds up programs that adjust
	// a lot of timers back and forth if the timers rarely expire.
	// We'll postpone looking through all the adjusted timers until
	// one would actually expire.
	if first := atomic.Load64(&pp.timerModifiedEarliest); first != 0 {
		if int64(first) > now {
			if verifyTimers {
				verifyTimerHeap(pp)
			}
			return
		}

		// We are going to clear all timerModifiedEarlier timers.
		atomic.Store64(&pp.timerModifiedEarliest, 0)
	}

	var moved []*timer
loop:
	for i := 0; i < len(pp.timers); i++ {
		t := pp.timers[i]
		if t.pp.ptr() != pp {
			throw("adjusttimers: bad p")
		}
		switch s := atomic.Load(&t.status); s {
		case timerDeleted:
			if atomic.Cas(&t.status, s, timerRemoving) {
				dodeltimer(pp, i)
				if !atomic.Cas(&t.status, timerRemoving, timerRemoved) {
					badTimer()
				}
				atomic.Xadd(&pp.deletedTimers, -1)
				// Look at this heap position again.
				i--
			}
		case timerModifiedEarlier, timerModifiedLater:
			if atomic.Cas(&t.status, s, timerMoving) {
				// Now we can change the when field.
				t.when = t.nextwhen
				// Take t off the heap, and hold onto it.
				// We don't add it back yet because the
				// heap manipulation could cause our
				// loop to skip some other timer.
				dodeltimer(pp, i)
				moved = append(moved, t)
				if s == timerModifiedEarlier {
					if n := atomic.Xadd(&pp.adjustTimers, -1); int32(n) <= 0 {
						break loop
					}
				}
				// Look at this heap position again.
				i--
			}
		case timerNoStatus, timerRunning, timerRemoving, timerRemoved, timerMoving:
			badTimer()
		case timerWaiting:
			// OK, nothing to do.
		case timerModifying:
			// Check again after modification is complete.
			osyield()
			i--
		default:
			badTimer()
		}
	}

	if len(moved) > 0 {
		addAdjustedTimers(pp, moved)
	}

	if verifyTimers {
		verifyTimerHeap(pp)
	}
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

// dodeltimer removes timer i from the current P's heap.
// We are locked on the P when this is called.
// It reports whether it saw no problems due to races.
// The caller must have locked the timers for pp.
func dodeltimer(pp *p, i int) {
	if t := pp.timers[i]; t.pp.ptr() != pp {
		throw("dodeltimer: wrong P")
	} else {
		t.pp = 0
	}
	last := len(pp.timers) - 1
    // 把 timer[i] 替换为 timer[last]
	if i != last {
		pp.timers[i] = pp.timers[last]
	}
    // 删除 timer[last]，并缩小 slice
	pp.timers[last] = nil
	pp.timers = pp.timers[:last]
    // 判断是不是删的最后一个
    // 如果不是的话，需要重新调整堆
	if i != last {
		// Moving to i may have moved the last timer to a new parent,
		// so sift up to preserve the heap guarantee.
        // 最后一个节点当前来的分叉可能并不是它那个分叉
        // 所以向上走或者向下走都是有可能的
        // 即使是二叉堆，也是有这种可能的
		siftupTimer(pp.timers, i)
		siftdownTimer(pp.timers, i)
	}
	if i == 0 {
		updateTimer0When(pp)
	}
	atomic.Xadd(&pp.numTimers, -1)
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78

// runtimer examines the first timer in timers. If it is ready based on now,
// it runs the timer and removes or updates it.
// Returns 0 if it ran a timer, -1 if there are no more timers, or the time
// when the first timer should run.
// The caller must have locked the timers for pp.
// If a timer is run, this will temporarily unlock the timers.
//go:systemstack
func runtimer(pp *p, now int64) int64 {
	for {
        // 获取最小堆的第一个元素
		t := pp.timers[0]
		if t.pp.ptr() != pp {
			throw("runtimer: bad p")
		}
        // 获取 timer 状态
		switch s := atomic.Load(&t.status); s {
		case timerWaiting:
            // 还没到时间，返回下次执行时间
			if t.when > now {
				// Not ready to run.
				return t.when
			}
            // 修改状态为 timerRunning
			if !atomic.Cas(&t.status, s, timerRunning) {
				continue
			}
			// Note that runOneTimer may temporarily unlock
			// pp.timersLock.
            // 运行该 timer
			runOneTimer(pp, t, now)
			return 0

		case timerDeleted:
			if !atomic.Cas(&t.status, s, timerRemoving) {
				continue
			}
            // 删除最小堆的第一个 timer
			dodeltimer0(pp)
			if !atomic.Cas(&t.status, timerRemoving, timerRemoved) {
				badTimer()
			}
			atomic.Xadd(&pp.deletedTimers, -1)
			if len(pp.timers) == 0 {
				return -1
			}
        // 需要重新移动位置的 timer
		case timerModifiedEarlier, timerModifiedLater:
			if !atomic.Cas(&t.status, s, timerMoving) {
				continue
			}
			t.when = t.nextwhen
            // 删除最小堆的第一个 timer
			dodeltimer0(pp)
            // 将该 timer 重新添加到最小堆
			doaddtimer(pp, t)
			if s == timerModifiedEarlier {
				atomic.Xadd(&pp.adjustTimers, -1)
			}
			if !atomic.Cas(&t.status, timerMoving, timerWaiting) {
				badTimer()
			}

		case timerModifying:
			// Wait for modification to complete.
			osyield()

		case timerNoStatus, timerRemoved:
			// Should not see a new or inactive timer on the heap.
			badTimer()
		case timerRunning, timerRemoving, timerMoving:
			// These should only be set when timers are locked,
			// and we didn't do it.
			badTimer()
		default:
			badTimer()
		}
	}
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59

// runOneTimer runs a single timer.
// The caller must have locked the timers for pp.
// This will temporarily unlock the timers while running the timer function.
//go:systemstack
func runOneTimer(pp *p, t *timer, now int64) {
	if raceenabled {
		ppcur := getg().m.p.ptr()
		if ppcur.timerRaceCtx == 0 {
			ppcur.timerRaceCtx = racegostart(funcPC(runtimer) + sys.PCQuantum)
		}
		raceacquirectx(ppcur.timerRaceCtx, unsafe.Pointer(t))
	}
    // 需要被执行的函数
	f := t.f
    // 被执行函数的参数
	arg := t.arg
	seq := t.seq
    // 表示该 timer 为 ticker，需要再次触发
	if t.period > 0 {
		// Leave in heap but adjust next time to fire.
        // 放入堆中并调整触发时间
		delta := t.when - now
		t.when += t.period * (1 + -delta/t.period)
		if t.when < 0 { // check for overflow.
			t.when = maxWhen
		}
		siftdownTimer(pp.timers, 0)
		if !atomic.Cas(&t.status, timerRunning, timerWaiting) {
			badTimer()
		}
		updateTimer0When(pp)
	} else {
		// Remove from heap.
		dodeltimer0(pp)
		if !atomic.Cas(&t.status, timerRunning, timerNoStatus) {
			badTimer()
		}
	}

	if raceenabled {
		// Temporarily use the current P's racectx for g0.
		gp := getg()
		if gp.racectx != 0 {
			throw("runOneTimer: unexpected racectx")
		}
		gp.racectx = gp.m.p.ptr().timerRaceCtx
	}

	unlock(&pp.timersLock)

	f(arg, seq)

	lock(&pp.timersLock)

	if raceenabled {
		gp := getg()
		gp.racectx = 0
	}
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

func schedule() {
    _g_ := getg()
    ...
top:
    pp := _g_.m.p.ptr()
    ...
    // 检查是否有可执行 timer 并执行
    checkTimers(pp, 0)
    var gp *g
    ...
    if gp == nil {
        gp, inheritTime = findrunnable() // blocks until work is available
    }
    ...
    execute(gp, inheritTime)
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

// Finds a runnable goroutine to execute.
// Tries to steal from other P's, get g from local or global queue, poll network.
func findrunnable() (gp *g, inheritTime bool) {
	_g_ := getg()

	// The conditions here and in handoffp must agree: if
	// findrunnable would return a G to run, handoffp must start
	// an M.

top:
	_p_ := _g_.m.p.ptr()
	if sched.gcwaiting != 0 {
		gcstopm()
		goto top
	}
	if _p_.runSafePointFn != 0 {
		runSafePointFn()
	}

	now, pollUntil, _ := checkTimers(_p_, 0)
    ...
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75

// checkTimers runs any timers for the P that are ready.
// If now is not 0 it is the current time.
// It returns the current time or 0 if it is not known,
// and the time when the next timer should run or 0 if there is no next timer,
// and reports whether it ran any timers.
// If the time when the next timer should run is not 0,
// it is always larger than the returned time.
// We pass now in and out to avoid extra calls of nanotime.
//go:yeswritebarrierrec
func checkTimers(pp *p, now int64) (rnow, pollUntil int64, ran bool) {
	// If it's not yet time for the first timer, or the first adjusted
	// timer, then there is nothing to do.
    // 获取 timer0 的执行时间
	next := int64(atomic.Load64(&pp.timer0When))
	nextAdj := int64(atomic.Load64(&pp.timerModifiedEarliest))
	if next == 0 || (nextAdj != 0 && nextAdj < next) {
		next = nextAdj
	}
    // 如果没有timer
	if next == 0 {
		// No timers to run or adjust.
		return now, 0, false
	}

	if now == 0 {
		now = nanotime()
	}
    // 下次执行大于当前时间，
	if now < next {
		// Next timer is not ready to run, but keep going
		// if we would clear deleted timers.
		// This corresponds to the condition below where
		// we decide whether to call clearDeletedTimers.
        // 如果需要删除的 timer 个数小于 timer列表个数的4分之1，直接返回
		if pp != getg().m.p.ptr() || int(atomic.Load(&pp.deletedTimers)) <= int(atomic.Load(&pp.numTimers)/4) {
			return now, next, false
		}
	}

	lock(&pp.timersLock)

	if len(pp.timers) > 0 {
        // 如果有计时器，则调用函数 adjusttimers() 进行调用（堆维护)
		adjusttimers(pp, now)
        // 调整了堆中的计时器之后，会通过 runtime.runtimer 依次查找堆中是否存在需要执行的计时器：
        // * 如果存在，直接运行计时器；
        // * 如果不存在，获取最新计时器的触发时间；
		for len(pp.timers) > 0 {
			// Note that runtimer may temporarily unlock
			// pp.timersLock.
            // 查找堆中是否存在需要执行的 timer
			if tw := runtimer(pp, now); tw != 0 {
				if tw > 0 {
					pollUntil = tw
				}
				break
			}
			ran = true
		}
	}

	// If this is the local P, and there are a lot of deleted timers,
	// clear them out. We only do this for the local P to reduce
	// lock contention on timersLock.
    // 如果需要删除的 timer 超过了 timer 列表数量的四分之一，那么清理需要删除的 timer
    // 在 runtime.checkTimers 的最后，如果当前 Goroutine 的处理器和传入的处理器相同，并且处理器中删除的计时器是堆中计时器的 1/4 以上，就会调用 runtime.clearDeletedTimers 删除处理器全部被标记为 timerDeleted 的计时器，保证堆中靠后的计时器被删除。
	if pp == getg().m.p.ptr() && int(atomic.Load(&pp.deletedTimers)) > len(pp.timers)/4 {
        // runtime.clearDeletedTimers 能够避免堆中出现大量长时间运行的计时器，该函数和 runtime.moveTimers 也是唯二会遍历计时器堆的函数。
		clearDeletedTimers(pp)
	}

	unlock(&pp.timersLock)

	return now, pollUntil, ran
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88

func sysmon() {
    ...
	for {
        ...
		// sysmon should not enter deep sleep if schedtrace is enabled so that
		// it can print that information at the right time.
		//
		// It should also not enter deep sleep if there are any active P's so
		// that it can retake P's from syscalls, preempt long running G's, and
		// poll the network if all P's are busy for long stretches.
		//
		// It should wakeup from deep sleep if any P's become active either due
		// to exiting a syscall or waking up due to a timer expiring so that it
		// can resume performing those duties. If it wakes from a syscall it
		// resets idle and delay as a bet that since it had retaken a P from a
		// syscall before, it may need to do it again shortly after the
		// application starts work again. It does not reset idle when waking
		// from a timer to avoid adding system load to applications that spend
		// most of their time sleeping.
		now := nanotime()
		if debug.schedtrace <= 0 && (sched.gcwaiting != 0 || atomic.Load(&sched.npidle) == uint32(gomaxprocs)) {
			lock(&sched.lock)
			if atomic.Load(&sched.gcwaiting) != 0 || atomic.Load(&sched.npidle) == uint32(gomaxprocs) {
				syscallWake := false
                // 获取下一次计时器启动的时间和持有该堆的P
				next, _ := timeSleepUntil()
				if next > now {
					atomic.Store(&sched.sysmonwait, 1)
					unlock(&sched.lock)
					// Make wake-up period small enough
					// for the sampling to be correct.
                    // 计算离下次启动计时器的时间
					sleep := forcegcperiod / 2
					if next-now < sleep {
						sleep = next - now
					}
                     // 休眠一段时间，唤醒后将直接执行堆中的timers
					shouldRelax := sleep >= osRelaxMinNS
					if shouldRelax {
						osRelax(true)
					}
					syscallWake = notetsleep(&sched.sysmonnote, sleep)
					mDoFixup()
					if shouldRelax {
						osRelax(false)
					}
					lock(&sched.lock)
					atomic.Store(&sched.sysmonwait, 0)
					noteclear(&sched.sysmonnote)
				}
				if syscallWake {
					idle = 0
					delay = 20
				}
			}
			unlock(&sched.lock)
		}

		lock(&sched.sysmonlock)
		// Update now in case we blocked on sysmonnote or spent a long time
		// blocked on schedlock or sysmonlock above.
		now = nanotime()

		// trigger libc interceptors if needed
		if *cgo_yield != nil {
			asmcgocall(*cgo_yield, nil)
		}
        // 如果超过 10ms 没有 poll，则 poll 一下网络
        lastpoll := int64(atomic.Load64(&sched.lastpoll))
        if netpollinited() && lastpoll != 0 && lastpoll+10*1000*1000 < now {
            atomic.Cas64(&sched.lastpoll, uint64(lastpoll), uint64(now))
            list := netpoll(0) // 非阻塞，返回 G 列表
            // G 列表不为空
            if !list.empty() {
                incidlelocked(-1)
                // 将获取到的 G 列表插入到空闲的 P 中或全局列表中
                injectglist(&list)
                incidlelocked(1)
            }
        }
        // 如果有 timer 到期
        if next < now {
            // 启动新的 M 处理 timer
            startm(nil, false)
        }
        ...
    }
}
