并发原语sync-Mutex和sync-RWMutex源码剖析

1
2
3
4

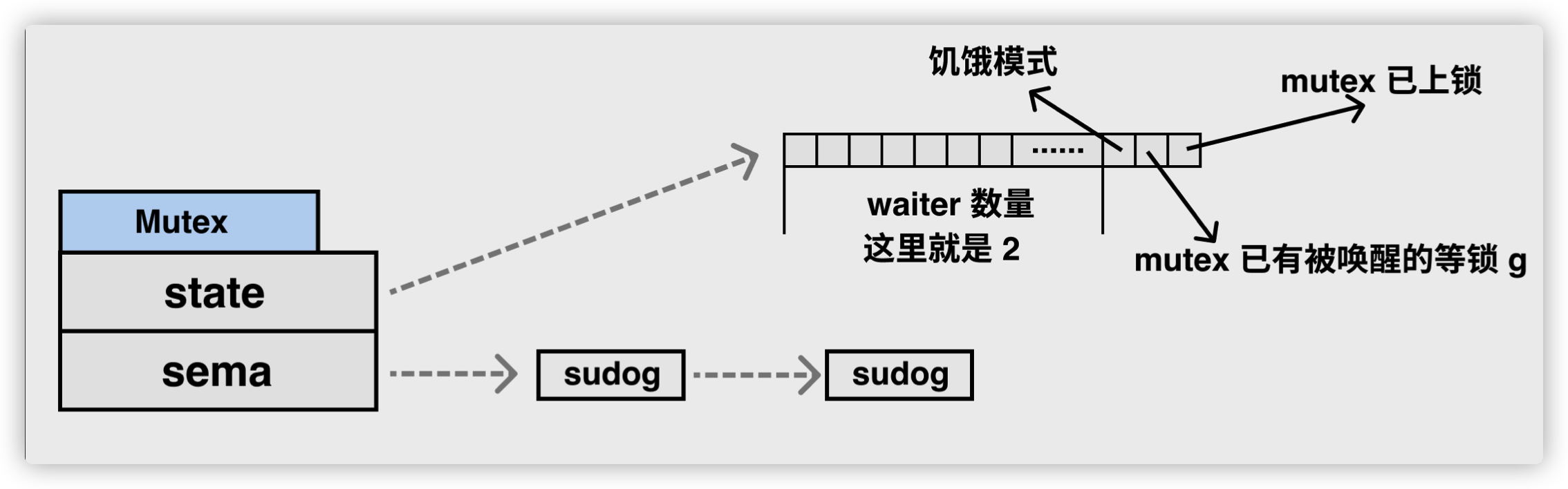

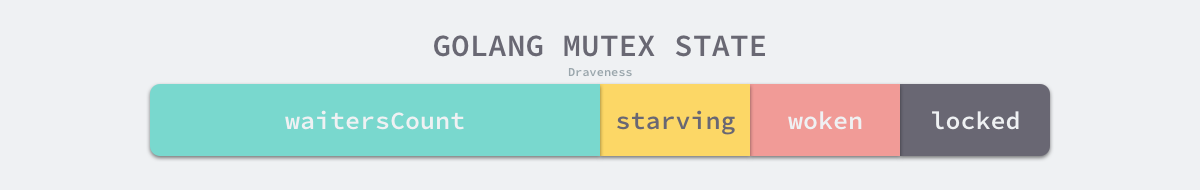

type Mutex struct {
	state int32
	sema  uint32
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

// Lock locks m.
// If the lock is already in use, the calling goroutine
// blocks until the mutex is available.
func (m *Mutex) Lock() {
    // Fast path: grab unlocked mutex.
    // 快速路径: 抓取并锁上未锁住状态的互斥锁
	if atomic.CompareAndSwapInt32(&m.state, 0, mutexLocked) {
		if race.Enabled {
			race.Acquire(unsafe.Pointer(m))
		}
		return
	}
    // Slow path (outlined so that the fast path can be inlined)
    // 缓慢之路,尝试自旋竞争或饥饿状态下饥饿goroutine竞争
	m.lockSlow()
}

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111

func (m *Mutex) lockSlow() {
	var waitStartTime int64
	starving := false // 此goroutine的饥饿标记
	awoke := false    // 唤醒标记
	iter := 0         //自旋次数
	old := m.state    //当前的锁的状态
	for {
		// Don't spin in starvation mode, ownership is handed off to waiters
		// so we won't be able to acquire the mutex anyway.
		// 锁是非饥饿状态,锁还没被释放,尝试自旋
		// 对正常状态抢夺锁的 goroutine 尝试 spin，在临界区耗时很短的情况提高性能.
		if old&(mutexLocked|mutexStarving) == mutexLocked && runtime_canSpin(iter) {
			// Active spinning makes sense.
			// Try to set mutexWoken flag to inform Unlock
			// to not wake other blocked goroutines.
			if !awoke && old&mutexWoken == 0 && old>>mutexWaiterShift != 0 &&
				atomic.CompareAndSwapInt32(&m.state, old, old|mutexWoken) {
				awoke = true
			}
			runtime_doSpin()
			iter++
			// 再次获取锁的状态,之后会检查是否锁被释放了
			old = m.state
			continue
		}
		new := old
		// Don't try to acquire starving mutex, new arriving goroutines must queue.
		//非饥饿状态下抢锁。怎么抢?就是要把 state 的锁的那一位，置为加锁状态，后续 CAS 如果成功就可能获取到了锁。
		if old&mutexStarving == 0 {
			new |= mutexLocked // 非饥饿状态,加锁
		}
		//如果锁已经被持有或者锁处于饥饿状态，我们最好的归宿就是等待， 所以 waiter 的数量加 1。
		if old&(mutexLocked|mutexStarving) != 0 {
			new += 1 << mutexWaiterShift // waiter数量加1
		}
		// The current goroutine switches mutex to starvation mode.
		// But if the mutex is currently unlocked, don't do the switch.
		// Unlock expects that starving mutex has waiters, which will not
		// be true in this case.
		//如果此 goroutine 已经处在饥饿状态，并且锁还被持有，那么，我们需要把此 Mutex 设置为饥饿状态。
		if starving && old&mutexLocked != 0 {
			new |= mutexStarving // 设置饥饿状态
		}
		//清除 mutexWoken 标记，因为不管是获得了锁还是进入休眠，我们都需要清除 mutexWoken 标记。
		if awoke {
			// The goroutine has been woken from sleep,
			// so we need to reset the flag in either case.
			if new&mutexWoken == 0 {
				throw("sync: inconsistent mutex state")
			}
			new &^= mutexWoken // 新状态清除唤醒标记
		}
		// 成功设置新状态
		// 尝试使用 CAS 设置 state。如果成功，检查原来的锁的 状态是未加锁状态，并且也不是饥饿状态的话就成功获取了锁，返回。
		if atomic.CompareAndSwapInt32(&m.state, old, new) {
			// 原来锁的状态已释放,并且不是饥饿状态,正常请求到了锁,返回
			if old&(mutexLocked|mutexStarving) == 0 {
				break // locked the mutex with CAS
			}
			// If we were already waiting before, queue at the front of the queue.
			// 处理饥饿状态
			// 如果以前就在队列里面,加入到队列头
			//判断是否第一次加入到 waiter 队列。
			queueLifo := waitStartTime != 0
			if waitStartTime == 0 {
				waitStartTime = runtime_nanotime()
			}
			// 阻塞等待
			//将此 waiter 加入到队列，如果是首次，加入到队尾，先进先出。如果不是首次， 那么加入到队首，这样等待最久的 goroutine 优先能够获取到锁。此 goroutine 会进行休眠。
			//如果没有通过 CAS 获得锁，会调用 runtime.sync_runtime_SemacquireMutex 通过信号量保证资源不会被两个 Goroutine 获取。runtime.sync_runtime_SemacquireMutex 会在方法中不断尝试获取锁并陷入休眠等待信号量的释放，一旦当前 Goroutine 可以获取信号量，它就会立刻返回，sync.Mutex.Lock 的剩余代码也会继续执行
			runtime_SemacquireMutex(&m.sema, queueLifo, 1)
			//判断此 goroutine 是否处于饥饿状态。注意，执行这一句的时候，它已经被唤醒了。
			starving = starving || runtime_nanotime()-waitStartTime > starvationThresholdNs
			// 唤醒之后检查锁是否应该处于饥饿状态
			old = m.state
			// 如果锁已经处于饥饿状态,直接抢到锁,返回

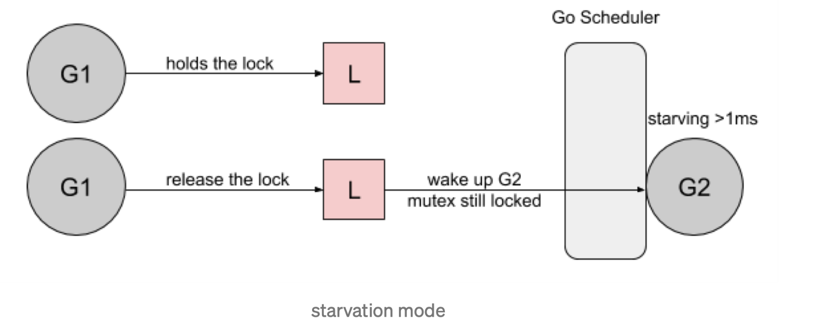

			//在饥饿模式下，当前 Goroutine 会获得互斥锁，如果等待队列中只存在当前 Goroutine，互斥锁还会从饥饿模式中退出；
			if old&mutexStarving != 0 {
				// If this goroutine was woken and mutex is in starvation mode,
				// ownership was handed off to us but mutex is in somewhat
				// inconsistent state: mutexLocked is not set and we are still
				// accounted as waiter. Fix that.
				if old&(mutexLocked|mutexWoken) != 0 || old>>mutexWaiterShift == 0 {
					throw("sync: inconsistent mutex state")
				}
				//加锁并且将waiter数减1
				delta := int32(mutexLocked - 1<<mutexWaiterShift)
				// 最后一个waiter或者已经不饥饿了,清掉饥饿标记
				if !starving || old>>mutexWaiterShift == 1 {
					// Exit starvation mode.
					// Critical to do it here and consider wait time.
					// Starvation mode is so inefficient, that two goroutines
					// can go lock-step infinitely once they switch mutex
					// to starvation mode.
					delta -= mutexStarving
				}
				atomic.AddInt32(&m.state, delta)
				break
			}
			//在正常模式下，这段代码会设置唤醒和饥饿标记、重置迭代次数并重新执行获取锁的循环；
			awoke = true
			iter = 0
		} else {
			old = m.state
		}
	}

	if race.Enabled {
		race.Acquire(unsafe.Pointer(m))
	}
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

func sync_runtime_canSpin(i int) bool {
	// sync.Mutex is cooperative, so we are conservative with spinning.
	// Spin only few times and only if running on a multicore machine and
	// GOMAXPROCS>1 and there is at least one other running P and local runq is empty.
	// As opposed to runtime mutex we don't do passive spinning here,
	// because there can be work on global runq or on other Ps.
	if i >= active_spin || ncpu <= 1 || gomaxprocs <= int32(sched.npidle+sched.nmspinning)+1 {
		return false
	}
	if p := getg().m.p.ptr(); !runqempty(p) {
		return false
	}
	return true
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

func sync_runtime_doSpin() {
	procyield(active_spin_cnt)
}

TEXT runtime·procyield(SB),NOSPLIT,$0-0
	MOVL	cycles+0(FP), AX
again:
	PAUSE
	SUBL	$1, AX
	JNZ	again
	RET

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22

// Unlock unlocks m.
// It is a run-time error if m is not locked on entry to Unlock.
//
// A locked Mutex is not associated with a particular goroutine.
// It is allowed for one goroutine to lock a Mutex and then
// arrange for another goroutine to unlock it.
func (m *Mutex) Unlock() {
	if race.Enabled {
		_ = m.state
		race.Release(unsafe.Pointer(m))
	}
    //如果该函数返回的新状态等于 0，当前 Goroutine 就成功解锁了互斥锁；
    //如果该函数返回的新状态不等于 0，这段代码会调用 sync.Mutex.unlockSlow 开始慢速解锁：
	// Fast path: drop lock bit.
	new := atomic.AddInt32(&m.state, -mutexLocked)
	if new != 0 {
		// Outlined slow path to allow inlining the fast path.
		// To hide unlockSlow during tracing we skip one extra frame when tracing GoUnblock.
		m.unlockSlow(new)
	}
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

func (m *Mutex) unlockSlow(new int32) {
    //先校验锁状态的合法性 — 如果当前互斥锁已经被解锁过了会直接抛出异常 “sync: unlock of unlocked mutex” 中止当前程序。
	if (new+mutexLocked)&mutexLocked == 0 {
		throw("sync: unlock of unlocked mutex")
    }

	if new&mutexStarving == 0 {
		old := new
		for {
			// If there are no waiters or a goroutine has already
			// been woken or grabbed the lock, no need to wake anyone.
			// In starvation mode ownership is directly handed off from unlocking
			// goroutine to the next waiter. We are not part of this chain,
			// since we did not observe mutexStarving when we unlocked the mutex above.
            // So get off the way.
            // 如果 Mutex 处于正常状态，如果没有 waiter，或者已经有在处理的情况了，那么释放就好，不做额外的处理
			if old>>mutexWaiterShift == 0 || old&(mutexLocked|mutexWoken|mutexStarving) != 0 {
				return
			}
            // Grab the right to wake someone.
            //否则，waiter 数减 1，mutexWoken 标志设置上，通过 CAS 更新 state 的值
			new = (old - 1<<mutexWaiterShift) | mutexWoken
			if atomic.CompareAndSwapInt32(&m.state, old, new) {
				// 唤醒一个阻塞的 goroutine，但不是唤醒第一个等待者
				runtime_Semrelease(&m.sema, false, 1)
				return
			}
			old = m.state
		}
	} else {
		// Starving mode: handoff mutex ownership to the next waiter, and yield
		// our time slice so that the next waiter can start to run immediately.
		// Note: mutexLocked is not set, the waiter will set it after wakeup.
		// But mutex is still considered locked if mutexStarving is set,
        // so new coming goroutines won't acquire it.
        //如果 Mutex 处于饥饿状态，直接唤醒等待队列中的 waiter。

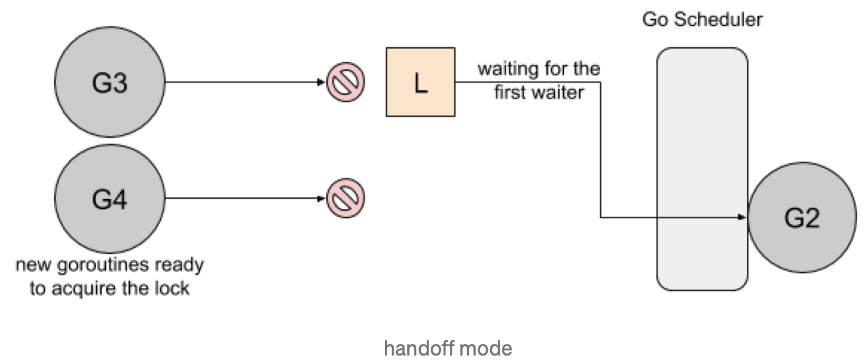

		// 饥饿模式: 直接将 mutex 所有权交给等待队列最前端的 goroutine
		runtime_Semrelease(&m.sema, true, 1)
	}
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22

// There is a modified copy of this file in runtime/rwmutex.go.
// If you make any changes here, see if you should make them there.

// A RWMutex is a reader/writer mutual exclusion lock.
// The lock can be held by an arbitrary number of readers or a single writer.
// The zero value for a RWMutex is an unlocked mutex.
//
// A RWMutex must not be copied after first use.
//
// If a goroutine holds a RWMutex for reading and another goroutine might
// call Lock, no goroutine should expect to be able to acquire a read lock
// until the initial read lock is released. In particular, this prohibits
// recursive read locking. This is to ensure that the lock eventually becomes
// available; a blocked Lock call excludes new readers from acquiring the
// lock.

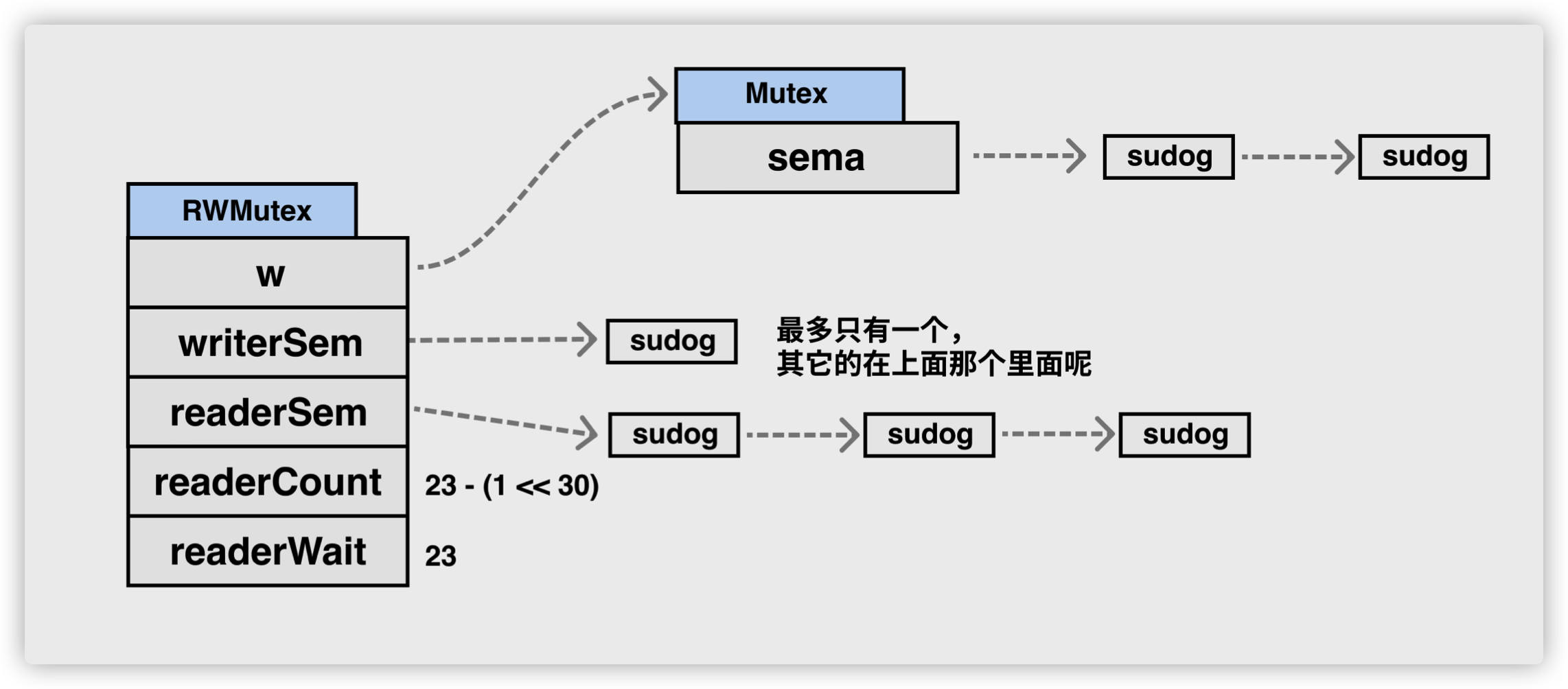

type RWMutex struct {
	w           Mutex  // held if there are pending writers // 互斥锁解决多个writer的竞争
	writerSem   uint32 // semaphore for writers to wait for completing readers  // writer信号量
	readerSem   uint32 // semaphore for readers to wait for completing writers  // reader信号量
	readerCount int32  // number of pending readers // reader的数量
	readerWait  int32  // number of departing readers   // writer等待完成的reader的数量
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21

// RLock locks rw for reading.
//
// It should not be used for recursive read locking; a blocked Lock
// call excludes new readers from acquiring the lock. See the
// documentation on the RWMutex type.
func (rw *RWMutex) RLock() {
	if race.Enabled {
		_ = rw.w.state
		race.Disable()
	}
	//reader 计数加 1。
	if atomic.AddInt32(&rw.readerCount, 1) < 0 {
		// A writer is pending, wait for it.
		// rw.readerCount是负值的时候,意味着此时有writer等待请求锁,因为writer优先
		runtime_SemacquireMutex(&rw.readerSem, false, 0)
	}
	if race.Enabled {
		race.Enable()
		race.Acquire(unsafe.Pointer(&rw.readerSem))
	}
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

// RUnlock undoes a single RLock call;
// it does not affect other simultaneous readers.
// It is a run-time error if rw is not locked for reading
// on entry to RUnlock.
func (rw *RWMutex) RUnlock() {
	if race.Enabled {
		_ = rw.w.state
		race.ReleaseMerge(unsafe.Pointer(&rw.writerSem))
		race.Disable()
	}
	if r := atomic.AddInt32(&rw.readerCount, -1); r < 0 {
		// Outlined slow-path to allow the fast-path to be inlined
		// 有等待的writer
		rw.rUnlockSlow(r)
	}
	if race.Enabled {
		race.Enable()
	}
}

func (rw *RWMutex) rUnlockSlow(r int32) {
	if r+1 == 0 || r+1 == -rwmutexMaxReaders {
		race.Enable()
		throw("sync: RUnlock of unlocked RWMutex")
	}
	// A writer is pending.
	if atomic.AddInt32(&rw.readerWait, -1) == 0 {
		// The last reader unblocks the writer.
		// 最后一个reader了,writer终于有机会获得锁了
		runtime_Semrelease(&rw.writerSem, false, 1)
	}
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

// Lock locks rw for writing.
// If the lock is already locked for reading or writing,
// Lock blocks until the lock is available.
func (rw *RWMutex) Lock() {
	if race.Enabled {
		_ = rw.w.state
		race.Disable()
	}
	// First, resolve competition with other writers.
	// 首先解决其他writer竞争问题
	rw.w.Lock()
	// Announce to readers there is a pending writer.
	// 反转readerCount,告诉reader有writer竞争锁
	//记录当前活跃的 reader 数量,所谓活跃的 reader,就是指持有读锁还没有释放的那些 reader。
	r := atomic.AddInt32(&rw.readerCount, -rwmutexMaxReaders) + rwmutexMaxReaders
	// Wait for active readers.
	// 如果当前有reader持有锁,那么需要等待
	// 如果 readerCount 不是 0,就说明当前有持有读锁的 reader,RWMutex 需要把这个当前 readerCount 赋值给 readerWait 字段保存下来, 同时,这个 writer 进入阻塞等待状态。
	if r != 0 && atomic.AddInt32(&rw.readerWait, r) != 0 {
		runtime_SemacquireMutex(&rw.writerSem, false, 0)
	}
	if race.Enabled {
		race.Enable()
		race.Acquire(unsafe.Pointer(&rw.readerSem))
		race.Acquire(unsafe.Pointer(&rw.writerSem))
	}
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

// Unlock unlocks rw for writing. It is a run-time error if rw is
// not locked for writing on entry to Unlock.
//
// As with Mutexes, a locked RWMutex is not associated with a particular
// goroutine. One goroutine may RLock (Lock) a RWMutex and then
// arrange for another goroutine to RUnlock (Unlock) it.
func (rw *RWMutex) Unlock() {
	if race.Enabled {
		_ = rw.w.state
		race.Release(unsafe.Pointer(&rw.readerSem))
		race.Disable()
	}
	// 告诉reader没有活跃的writer了
	// Announce to readers there is no active writer.
	r := atomic.AddInt32(&rw.readerCount, rwmutexMaxReaders)
	if r >= rwmutexMaxReaders {
		race.Enable()
		throw("sync: Unlock of unlocked RWMutex")
	}
	// Unblock blocked readers, if any.
	for i := 0; i < int(r); i++ {
		// 唤醒阻塞的reader们
		runtime_Semrelease(&rw.readerSem, false, 0)
	}
	// Allow other writers to proceed.
	// 释放内部的互斥锁
	rw.w.Unlock()
	if race.Enabled {
		race.Enable()
	}
}
